--High Durability for Humid & Typhoon Conditions

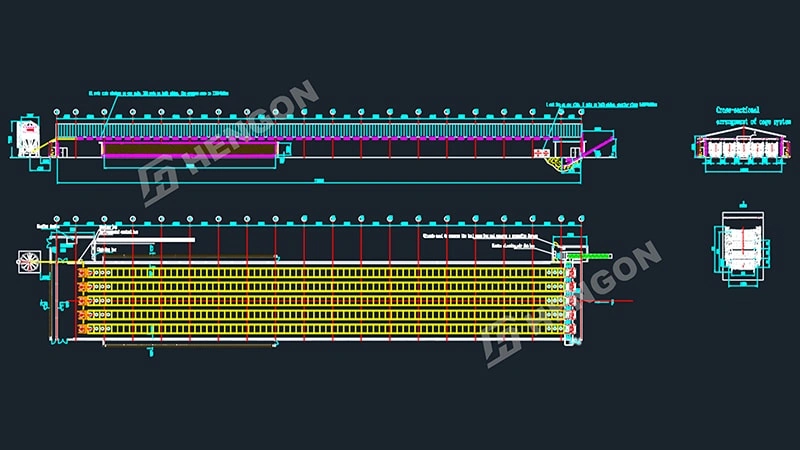

This poultry house design (110m × 16m × H4.2m) represents the typical scale of modern broiler farms in the Philippines.
It is engineered to achieve high efficiency, reliable durability, and optimal ventilation under tropical conditions.
| Country | Philippines | Year | 2022 | ||
| Equipments Info: | |||||
| Chicken type: | Broiler in cages | Dimension | 110mx16mx4T | Capacity/birds: | 88000 |
| Broiler harvesting type: | manually catching | Broiler harvest weight (kg/bird): | 1.8 | ||
| House Info: | |||||
| Size | 110mx16mxH4.2m | Wind speed | 250km/h | Roofing | 0.4mm corrugated sheet |
| Ceiling | 0.4mm corrugated sheet+75mm fiber glass wool insulation | Wall | 50mm EPS sandwich panel | Brick wall | 0.5m |
| Columns | Exposed | Roof drainage | 1m eave overhang | Doors | Insulation door |
Corrosion-Resistant Structure for Humid Climate
Given the high humidity in the Philippines, all structural and equipment materials are carefully selected for long-term performance.
HENGON uses premium hot-dip galvanized and aluminum-zinc coated steel to ensure superior corrosion resistance and durability.

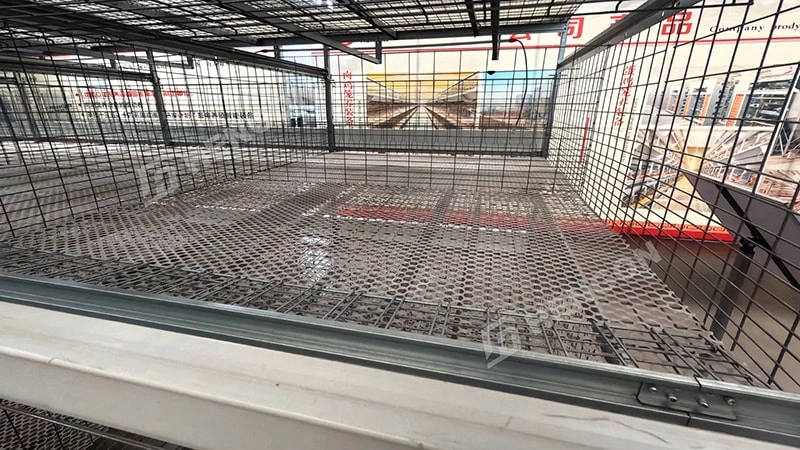

High-Quality, Customized Equipment System
All equipment motors are custom-developed by HENGON, designed to match local voltage standards and stable power conditions.
These motors deliver long service life, low failure rates, and strong performance even in demanding environments.
Structural Design for Typhoon Resistance
The poultry house is built to withstand wind speeds up to 250 km/h, ensuring stability during the frequent typhoon seasons.
The columns are exposed outside the enclosure to enhance interior air circulation and reduce heat buildup—helping save energy and improve bird comfort.
Summary
This project demonstrates HENGON’s capability to deliver custom-engineered poultry house solutions adapted to local climates and operational needs — combining strength, ventilation, and energy efficiency in one integrated system.
