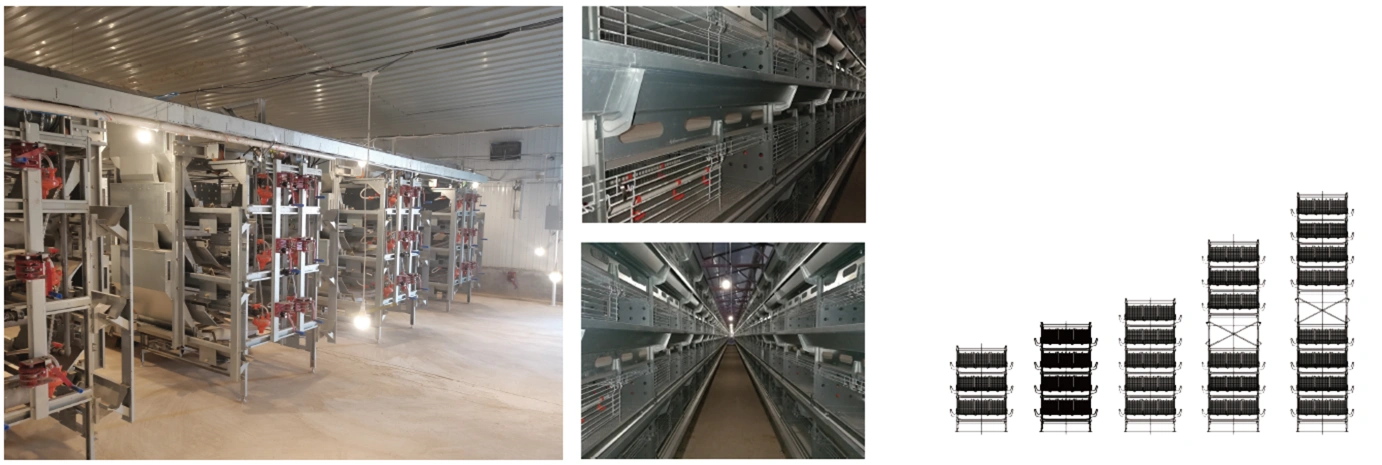

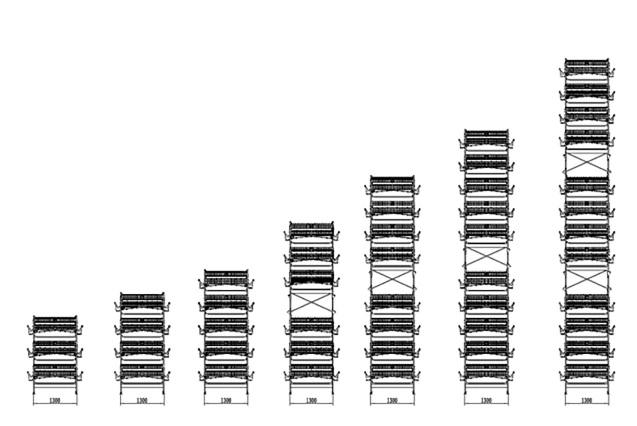

| Type | Tiers | Width(mm) | Depth(mm) | Single-tier Stocking Density(birds/c㎡) | Single-tier Rearing Area/c㎡ | Total Width(mm) | Tier Height(mm) | Total Height(mm) |
|---|---|---|---|---|---|---|---|---|
| 9LDC3216 | 3 | 625 | 650 | 9/10 | 450/433 | 1300 | 640 | 2250 |
| 9LDC4320 | 4 | 625 | 650 | 9/10 | 450/433 | 1300 | 640 | 2890 |
| 9LDC5400 | 5 | 625 | 650 | 9/10 | 450/433 | 1300 | 640 | 3530 |

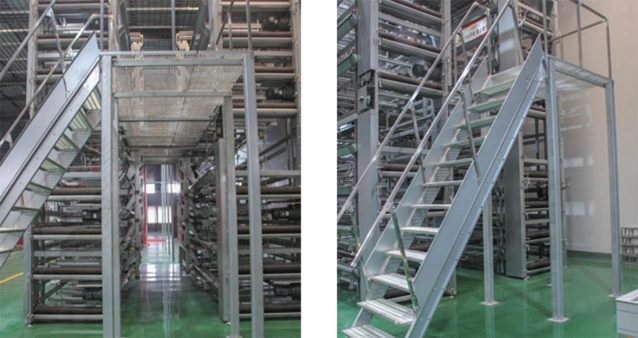

| Two levels and T-shaped platform | ||||||||
| 9LDC8640 | 8 | 625 | 650 | 9/10 | 450/433 | 1300 | 640 | 6265 |
| 9LDC12960 | 12 | 625 | 650 | 9/10 | 450/433 | 1300 | 640 | 9689 |
| Type | Heignt(mm) | Width(mm) | Depth(mm) | Bottom Mesh(c㎡) | Total Height(mm) |
|---|---|---|---|---|---|
| 9HLXy4384A | 640 | 1250 | 650 | 8125 | 2890 |
| 9HLXy5480 | 640 | 1250 | 650 | 8125 | 3530 |
| Double-deck | Double-deck platform and fence aisle | ||||
| 9HLXy8768 | 640 | 1250 | 650 | 8125 | 6265 |

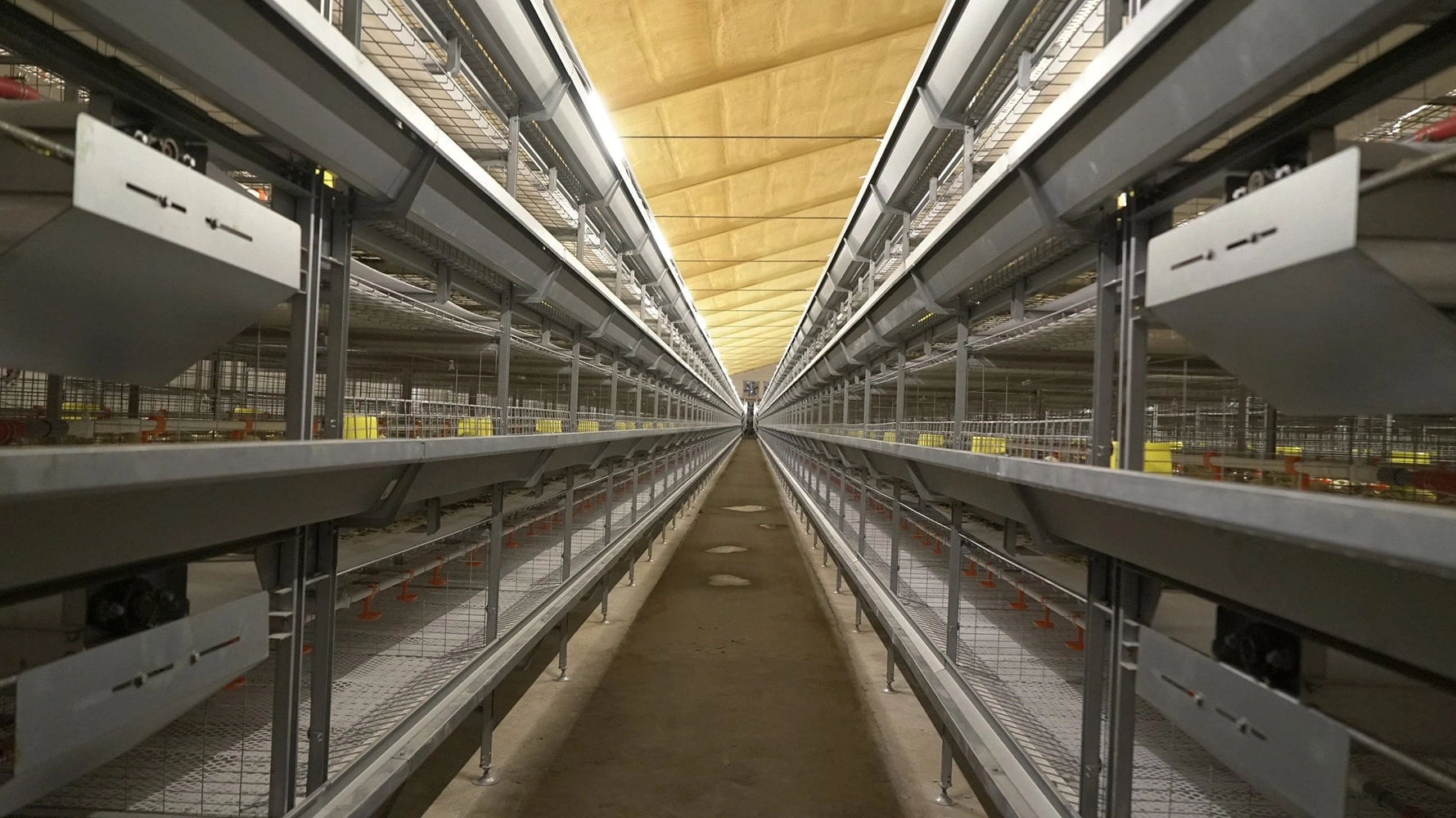

The traveling feeding system ensures even feed distribution. The hopper features a special adjustment mechanism that allows feed volume to be modified as birds grow.

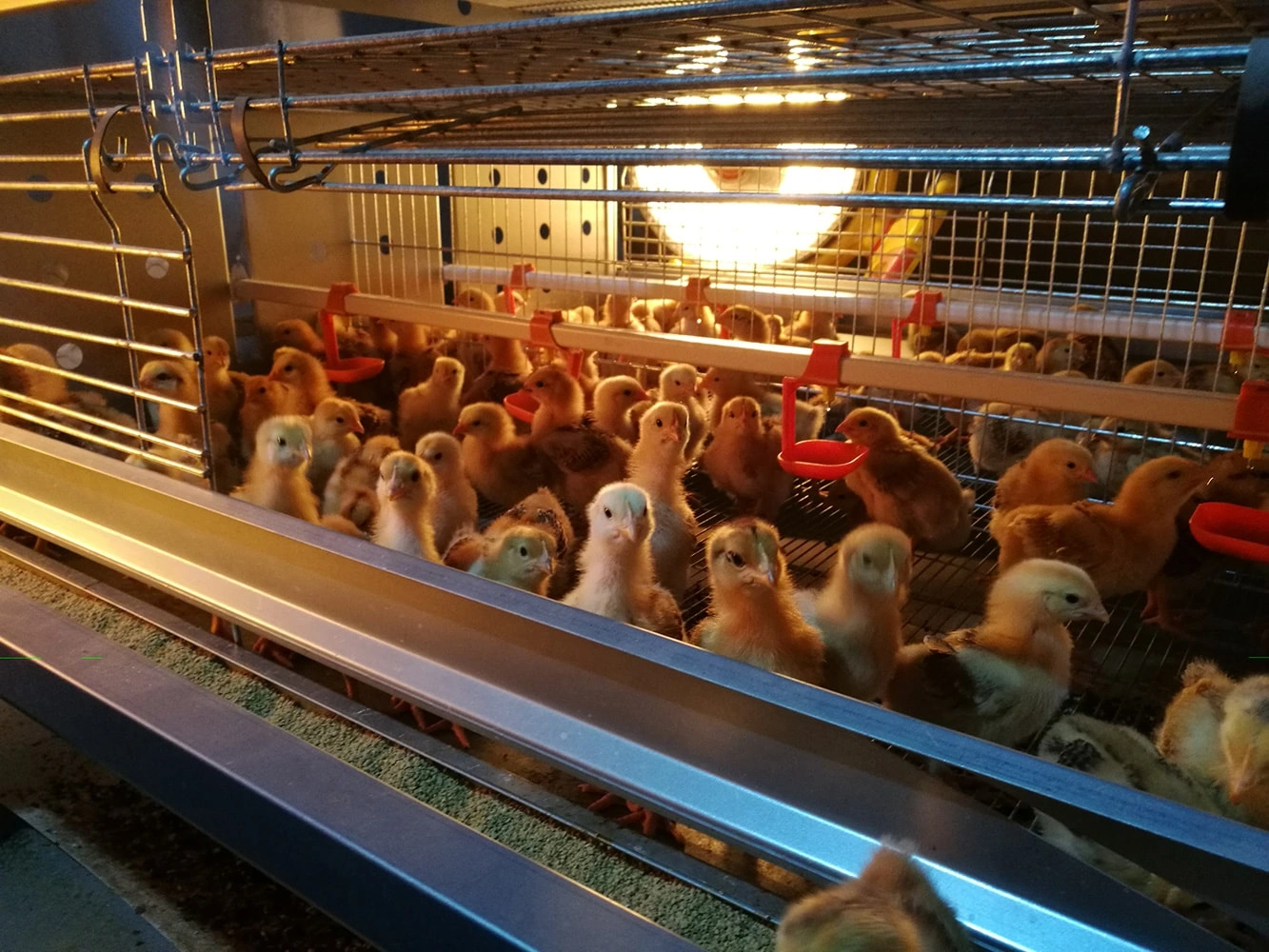

The trough is made of hot-dip galvanized sheet and equipped with an internal adjustment plate. Chicks feed from below the plate in early days, and as they grow, the plate drops, allowing access from above. An anti-escape wire above the plate prevents chicks from jumping out. This smart combination ensures free feeding while keeping chicks safely in place.
Cage Mesh: The bottom mesh uses imported galfan wire, high strength, good elasticity, and smooth surface. It effectively reduces bird fatigue and minimizes eggshell damage.
Steel Sheet: Made of 275g zinc-aluminum-magnesium coated steel, customized for high strength and excellent corrosion resistance, ensuring long-term durability.
Column spacing: 1250 mm. Short span with multiple support points ensures excellent equipment stability.
Easy-to-operate cage doors help reduce feed waste caused by bird movement.
Lock-type sliding doors and spring-loaded inward-push doors for secure and convenient access.

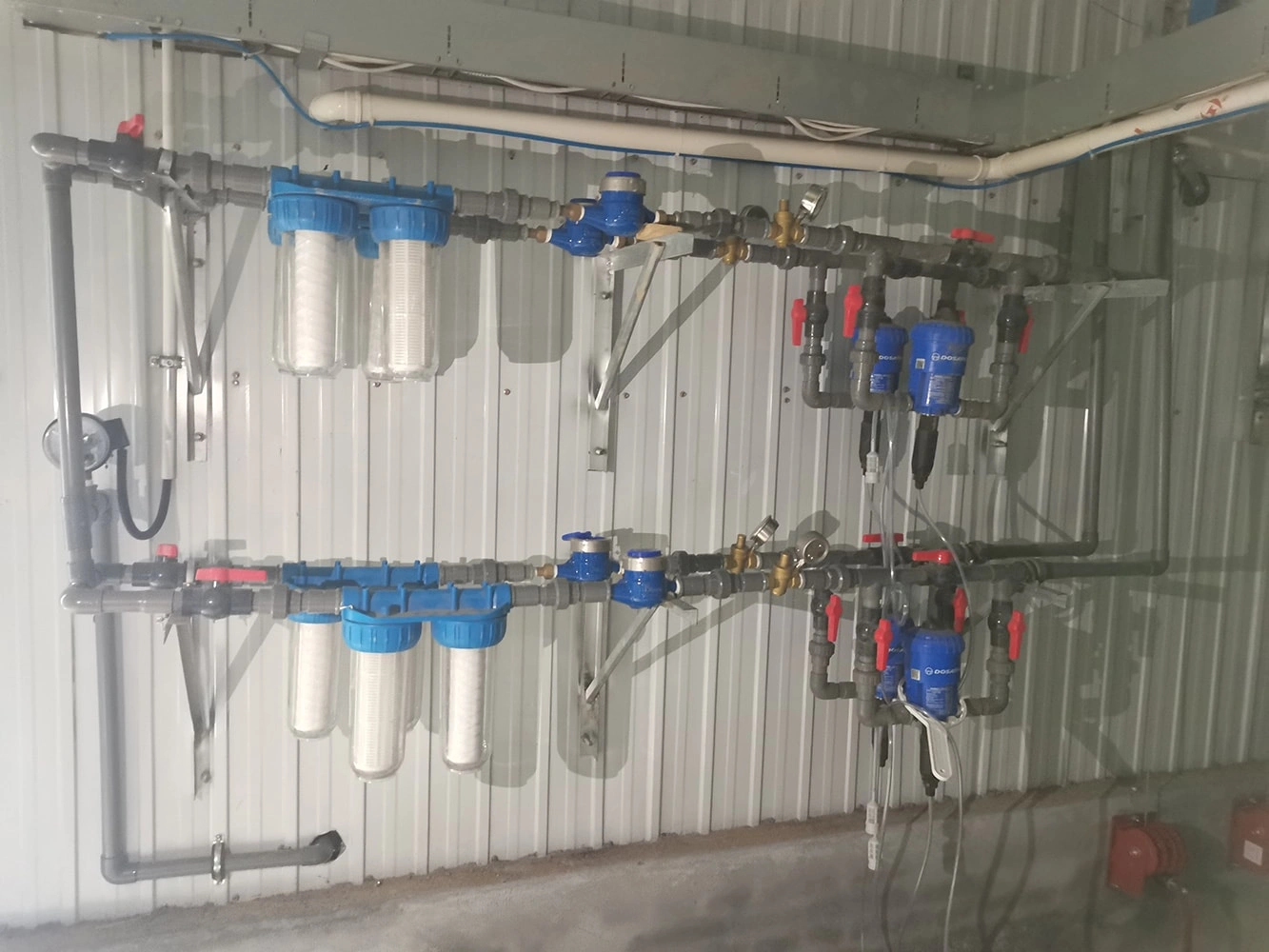

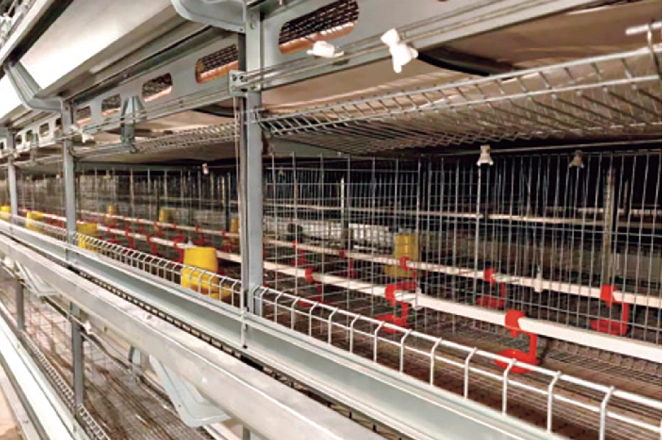

Imported nipple drinkers with V-shaped drip troughs beneath the water lines prevent water from dripping onto the manure belt.
Deep V-shaped feed trough ensures feed distribution. Feed is automatically collected within the optimal feeding zone, preventing mold and ensuring birds always access fresh feed, reducing waste.
Fully digitized robotic processing with 11-step bending for high strength—strong enough to withstand foot traffic. Plug-in connections provide enhanced stability.
Seamless rail-to-trough connection with smooth-running guide wheels ensures quiet, stable operation and uniform feed delivery.

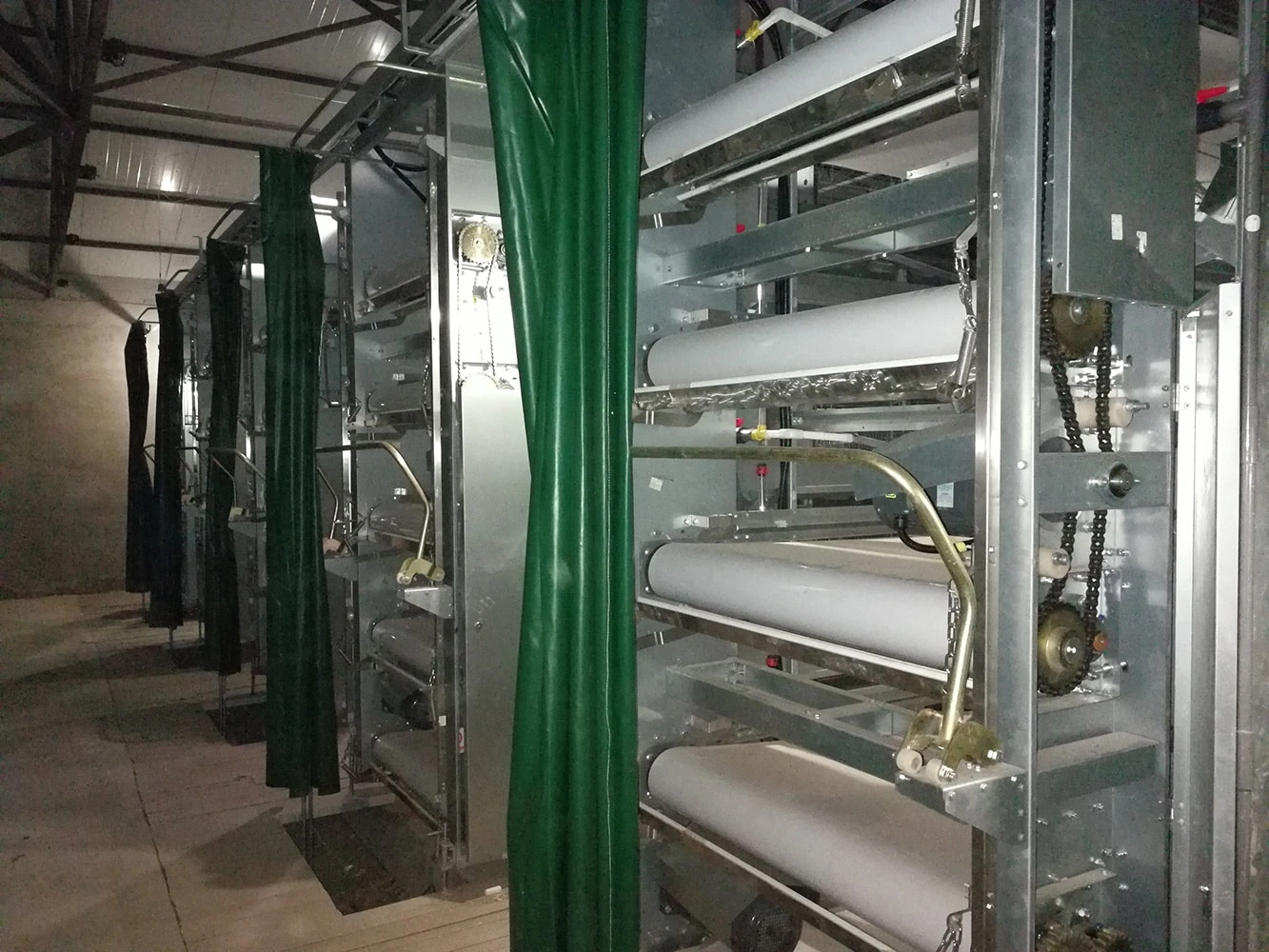

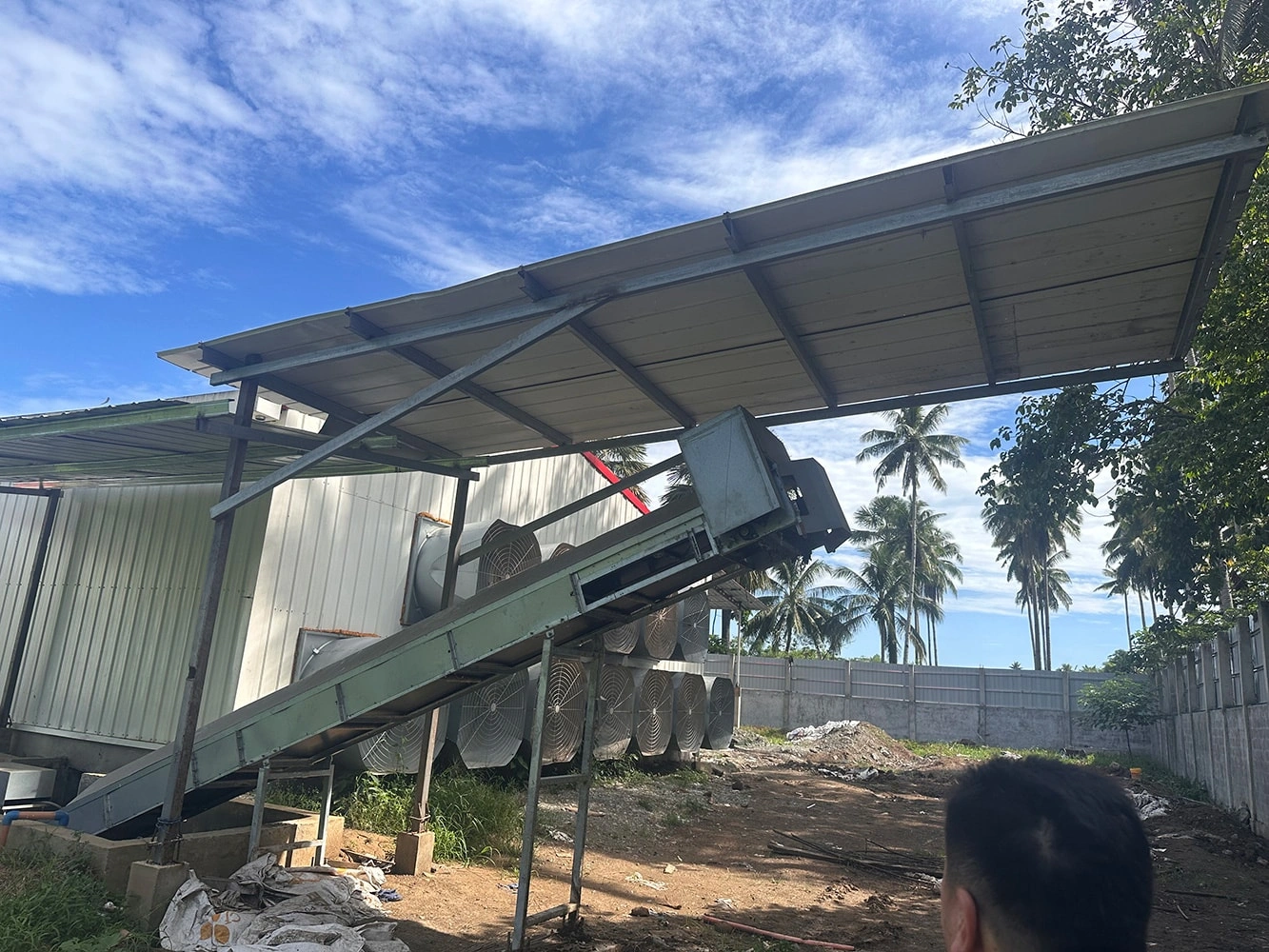

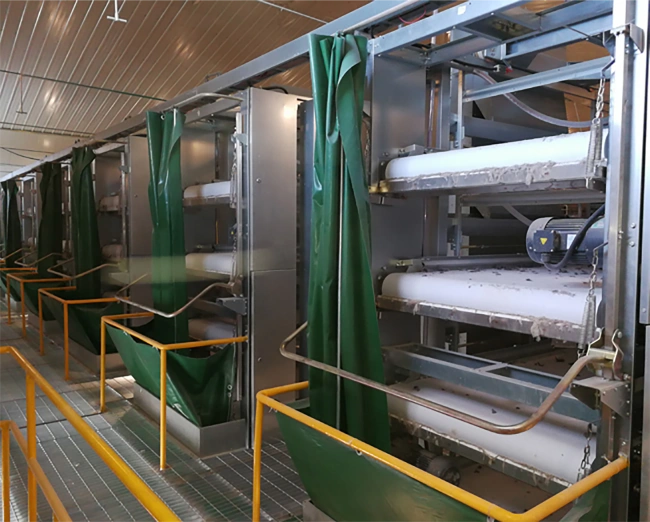

Made from internationally branded raw materials, the PP manure belt uses 100% virgin material for durability and safety.
High overall processing precision, with connection tolerance within 1 mm, ensures smooth and consistent belt operation.
Built-in double scrapers ensure thorough manure removal.
Unified open/close mechanism with removable scrapers for easy cleaning and replacement.
Stainless steel pull rods and scraper components for long-lasting performance.
Bottom mesh angled at 7° to reduce egg breakage.

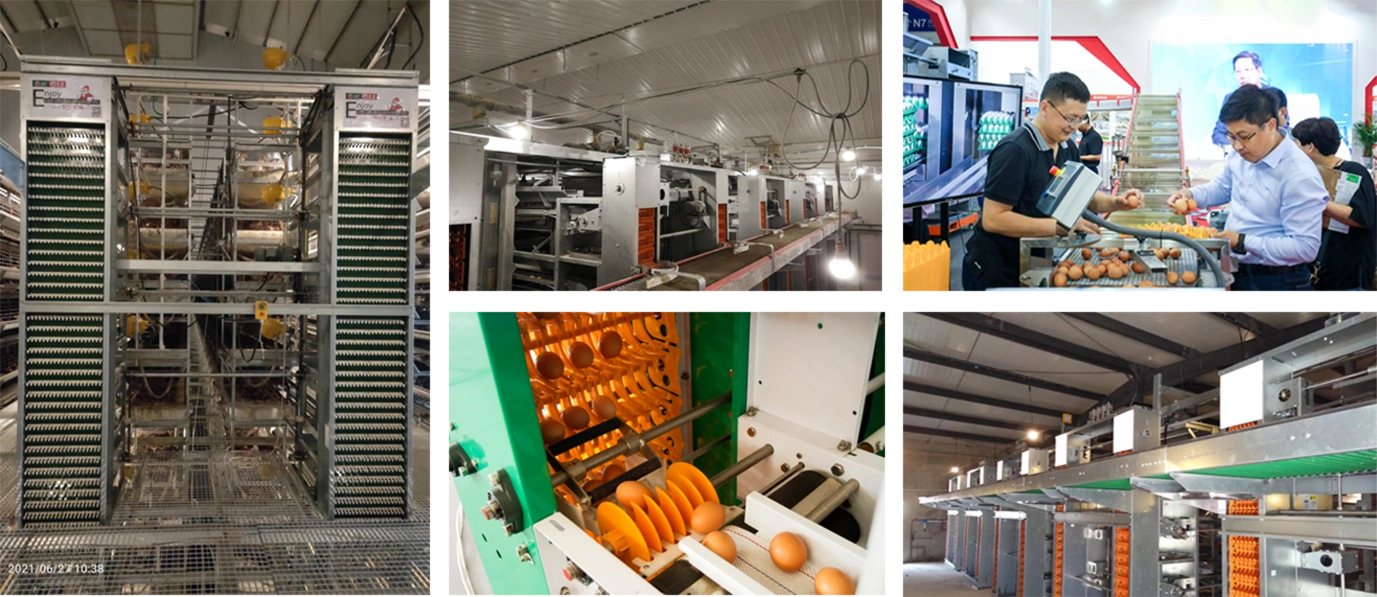

Two egg collection systems available: belt type and intermittent type. A soft egg removal device is installed at the connection between the egg collector and egg belt; broken or soft eggs fall into a large, easy-to-clean egg tray below.
The central egg conveyor delivers eggs from each row to the egg room or storage area.

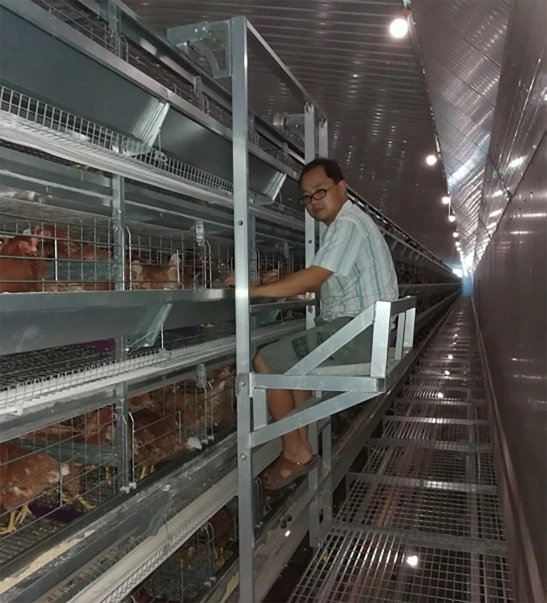

Aisle fences are hot-dip galvanized for excellent corrosion resistance, impact strength, and load-bearing capacity. Designed for optimal ventilation, lighting, and heat dissipation with strong anti-slip performance.

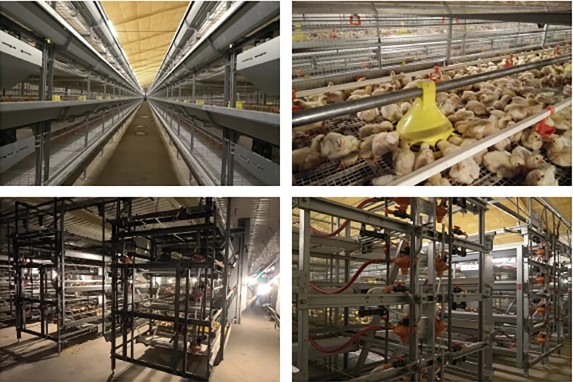

Since 2006, Hengon has been dedicated to the development of stacked broiler cages, starting with white-feather broilers. With over 15 years of continuous focus on poultry cage systems, Hengon remains a leader in the research and promotion of automated stacked cage rearing for white-feather broilers, yellow-feather broilers, roosters, and meat ducks. Today, Hengon sets the industry benchmark for meat poultry cage systems and is the preferred choice and reference for farming clients.

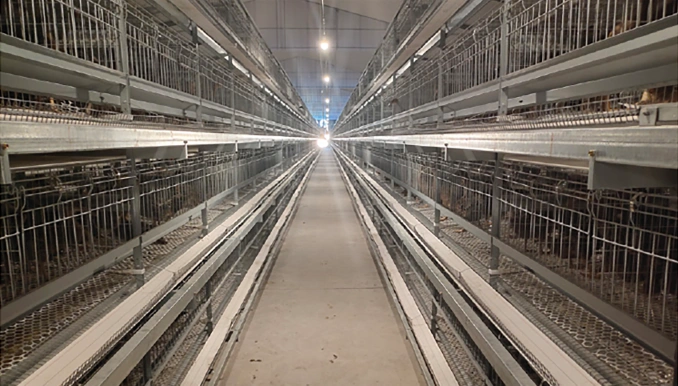

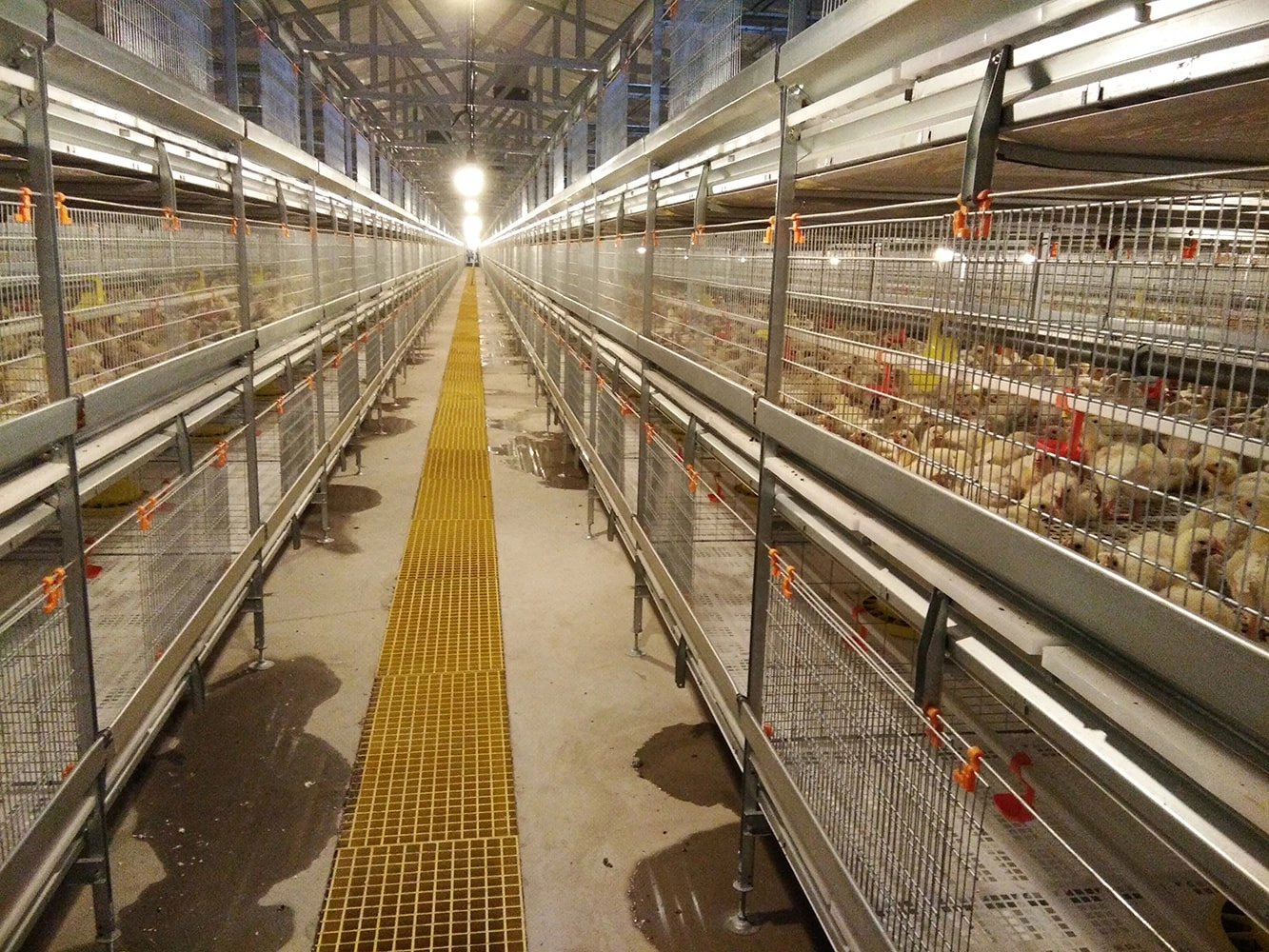

Automatic Broiler Cage Size:
1. Single cage size: Depth 1600 mm × Length 1250 mm (no middle partition mesh)
2. Type: Single-unit system with feed tray feeding
3. Per cage number: 40 birds
4. Space allowance/bird: 500 cm²
5. Tier design: Three-tier, four-tier

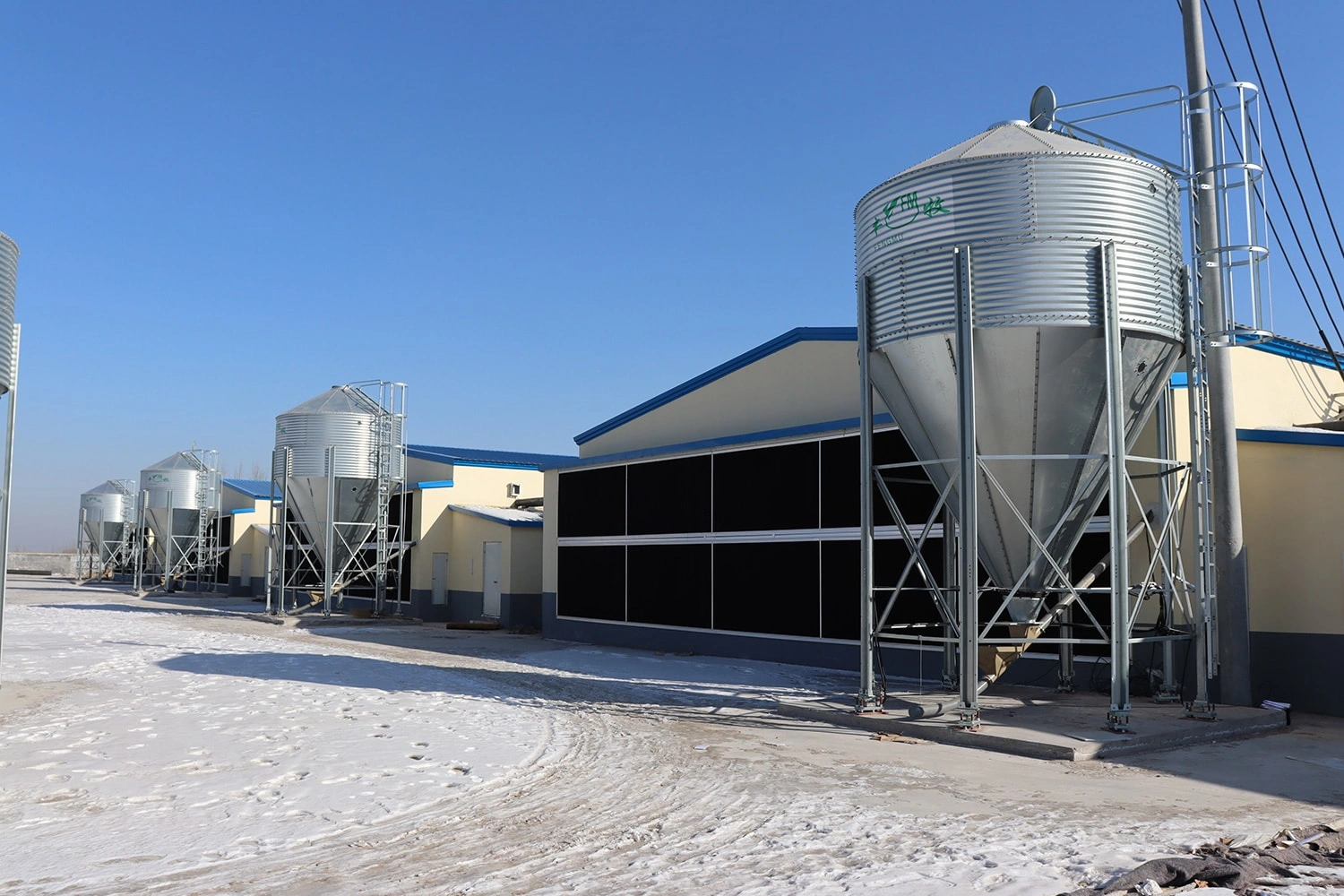

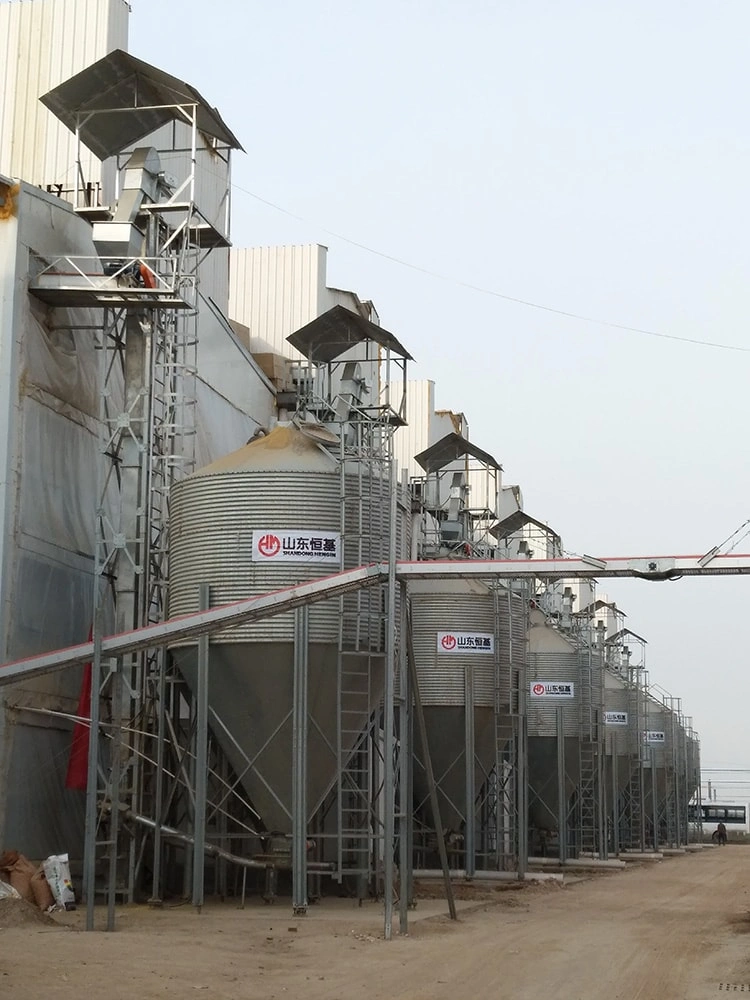

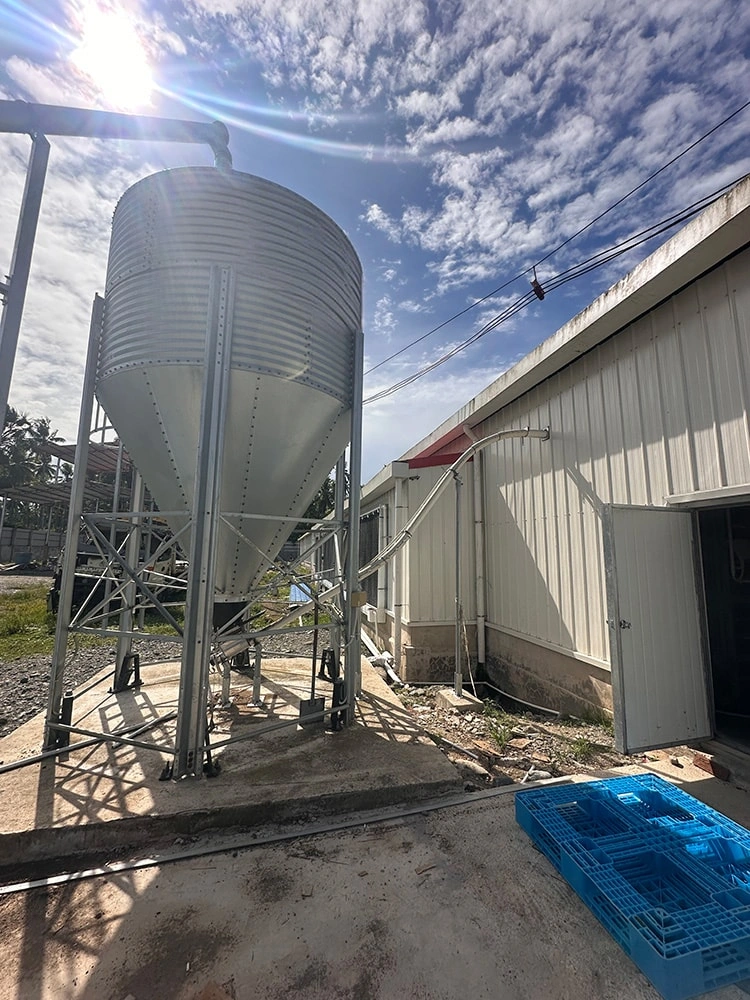

| Type | Theoretical Capacity/T | Volume/m³ | Self-Weight/kg | Height/m | Top Cone Plate Thickness (mm) / Quantity | Top Cone Plate Thickness (mm) / Qty | Bottom Cone Plate Thickness (mm) / Qty | Support Leg Thickness (mm) / Qty | Angle of Top and Bottom Cones | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1834-1Layer | 3.0 | 4.6 | 330 | 4.1 | 1.0 | 6 | 1.0 | 2 | 1.2 | 6 | 2.5 | 4 | 30°/67° | |||
| 1834-2Layer | 4.5 | 6.9 | 400 | 5.0 | 1.0 | 6 | 1.2 | 1.0 | 2 | 1.2 | 6 | 2.5 | 4 | 30°/67° | ||
| 1834-3Layer | 6.0 | 9.2 | 460 | 5.9 | 1.0 | 6 | 1.0 | 1.0 | 2 | 1.2 | 6 | 2.5 | 4 | 30°/67° | ||
| Type | Theoretical Capacity/T | Volume/m³ | Self-Weight/kg | Height/m | Top Cone Plate Thickness (mm) / Quantity | Top Cone Plate Thickness (mm) / Qty | Bottom Cone Plate Thickness (mm) / Qty | Support Leg Thickness (mm) / Qty | Angle of Top and Bottom Cones | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2750-1Layer | 7.5 | 11.6 | 595 | 4.7 | 1.0 | 9 | 1.0 | 3 | 1.2 | 9 | 2.5 | 6 | 30°/60° | |||
| 2750-2Layer | 11.0 | 16.8 | 690 | 5.6 | 1.0 | 9 | 1.2 | 1.0 | 3 | 1.2 | 9 | 2.5 | 6 | 30°/60° | ||
| 2750-3Layer | 14.3 | 22.0 | 770 | 6.5 | 1.0 | 9 | 1.2 | 1.0 | 1.0 | 3 | 1.2 | 9 | 2.5 | 6 | 30°/60° | |
| 2750-4Layer | 17.7 | 27.2 | 880 | 7.4 | 1.0 | 9 | 1.2 | 1.0 | 1.0 | 1.0 | 3 | 1.2 | 9 | 3 | 6 | 30°/60° |
| Type | Theoretical Capacity/T | Volume/m³ | Self-Weight/kg | Height/m | Top Cone Plate Thickness (mm) / Quantity | Top Cone Plate Thickness (mm) / Qty | Bottom Cone Plate Thickness (mm) / Qty | Support Leg Thickness (mm) / Qty | Angle of Top and Bottom Cones | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3668-1Layer | 15.8 | 24.3 | 940 | 5.7 | 1.0 | 12 | 1.0 | 4 | 1.5 | 12 | 3 | 8 | 30°/60° | |||
| 3668-2Layer | 21.8 | 33.6 | 1070 | 6.6 | 1.0 | 12 | 1.2 | 1.0 | 4 | 1.5 | 12 | 3 | 8 | 30°/60° | ||
| 3668-3Layer | 27.9 | 42.9 | 1180 | 7.5 | 1.0 | 12 | 1.2 | 1.0 | 1.0 | 4 | 1.5 | 12 | 3 | 8 | 30°/60° | |
| 3668-4Layer | 33.9 | 52.2 | 1295 | 8.4 | 1.0 | 12 | 1.2 | 1.0 | 1.0 | 1.0 | 4 | 1.5 | 12 | 3 | 8 | 30°/60° |

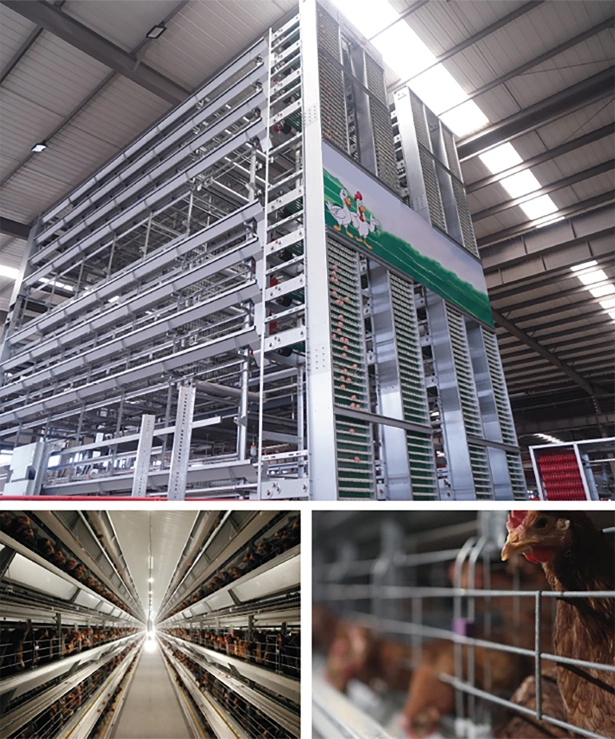

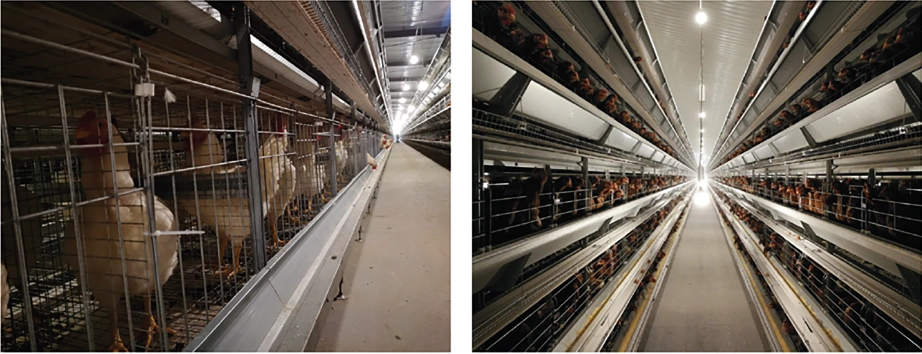

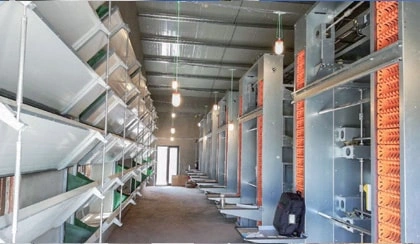

Our layer cage system significantly increases egg production per unit area, enables automated management, and reduces disease transmission. With clean eggs, low breakage rates, and high feed efficiency, it is ideal for large-scale farming and can reduce farming costs at least 6%.
The traveling feeding system ensures even feed distribution. The hopper features a special adjustment mechanism that allows feed volume to be modified as birds grow.
◎ Bottom mesh angled at 7° to reduce egg breakage. ◎ Two egg collection systems available: belt type and intermittent type. A soft egg removal device is installed at the connection between the egg collector and egg belt; broken or soft eggs fall into a large, easy-to-clean egg tray below.
